GREATZT 1PCS MT3608 DC-DC Adjustable Boost Module 2A Boost Plate Step Up Module with MICRO USB 2V-24V to 5V 9V 12V 28V

Name: GREATZT 1PCS MT3608 DC-DC Adjustable Boost Module 2A Boost Plate Step Up Module with MICRO USB 2V-24V to 5V 9V 12V 28V
Brand: Smart Device
SKU: 32477478565-MT3608withUSB
Price: 476.68 PKR
Availability: InStock

Rs.476.68

Shipping calculated at checkout.

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Share this Product

Electrical Characteristics:

MT3608 2A Max DC-DC Step Up Power Module Booster Power Module For Arduino

Features:

1. Maximum output current: 2A

2. Input voltage: 2 v - 24 v

3. Maximum output voltage:> 5V-28 v

4. Efficiency:> 93%

Size:

Note:

1. Input voltage should not exceed the maximum input voltage

2. Peak current output current does not exceed 2A

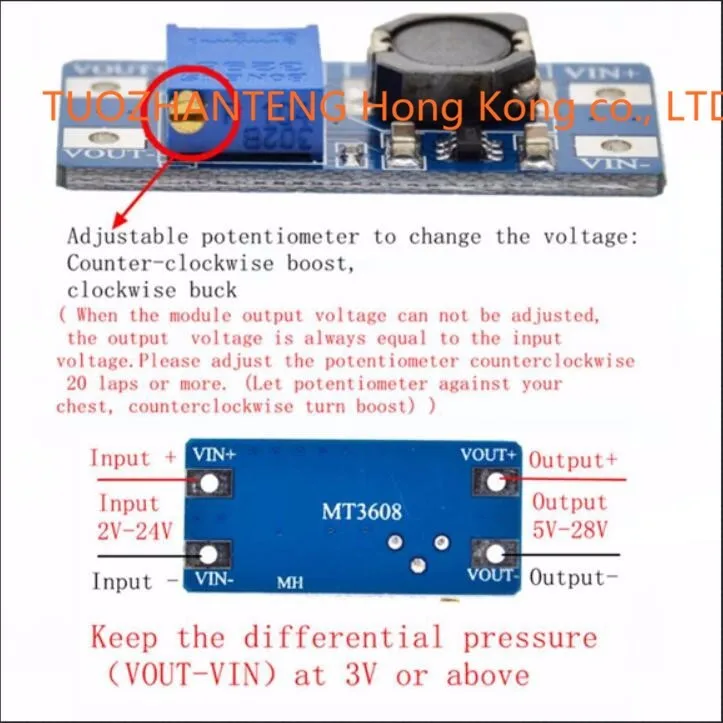

3. When the module output voltage can not be adjusted, always equal to the input voltage when the first 20 laps counterclockwise rotary potentiometer or more, then you can use the module properly regulate the voltage. Surge mode: potentiometer face chest, counterclockwise turn boost!

1. Based on the ordinary version to increase the USB

MICRO interface, can be directly used the most input charger

2. Maximum output current: 2A

3. Input voltage: 2 v - 24 v

4. Maximum output voltage:> 5V-28 v

5. Efficiency:> 93%

MT3608 1 mt3608 2 MT3608 3

2A Adjustable Booster Board DC-DC Step-up Module

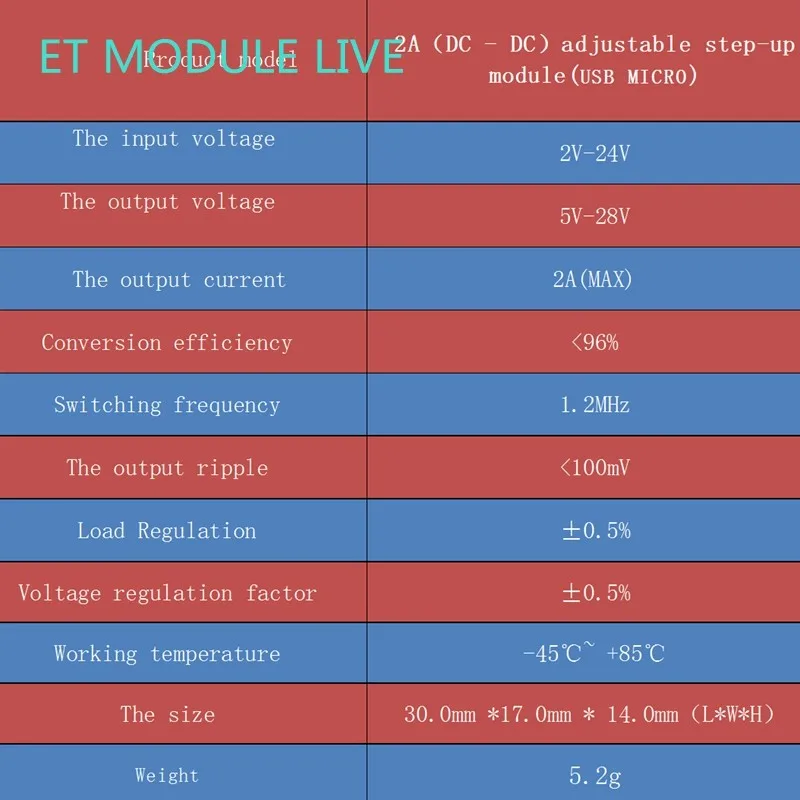

Description:
The whole network smallest adjustable boost module can be easily installed in a variety of small equipment.
The module supports MicroUSB input, a USB charger or mobile power supply can easily get to it 9V, 12V, 15V, 18V, 24V, easy to use.
Wide input and output voltage, high conversion efficiency.
Maximum output current: 2A (recommended for use within 1A)
Input voltage: 2 v ~ 24 v
Maximum output voltage:> 28 v (recommended for use within 26V)
Efficiency:> 93%
Size: 30mm * 17mm * 14mm (L * W * H)
This module is a step-up module, the output voltage is greater than the input voltage.
Peak current output current does not exceed 2A.

Package Included:

1X 2A Booster Board

HTB1M0hPuv9TBuNjy1zbq6xpepXal HTB1hrtWuuOSBuNjy0Fdq6zDnVXaW HTB1XByiuxGYBuNjy0Fnq6x5lpXad HTB1Dcp0uACWBuNjy0Faq6xUlXXau
