NRF52840 Bluetooth 5.0/4.2 Module Small Size, Long Distance, Low Power BLE Mesh Networking Module
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Share this Product

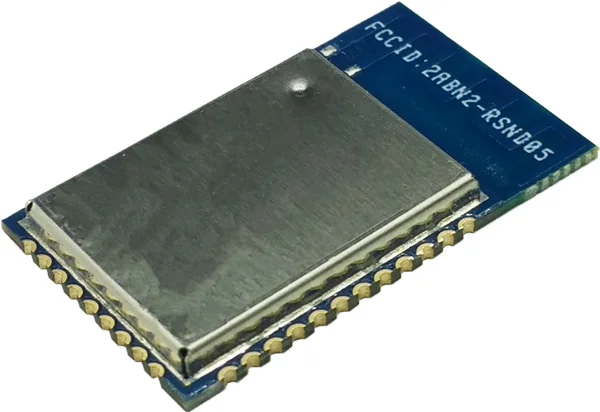

Sincerely Technologies has released a module based on the nRF52840 low power Bluetooth (Bluetooth < Low Energy / Bluetooth LE) system-level chip (SoC) model RF-BM-ND05. NRF52840 is an advanced version of the NRF52 series of high-performance Bluetooth 5, with rich features and peripherals, flexibility to support a wide range of network connectivity products for wearable settings, games, VR / AR, and home and industrial IOT applications.At present, the NRF52840 module of Shin Chi DA has been fully produced and has passed FCC certification.
NRF52840 module with Nordic's S140 protocol stack (Nordic's latest RF Bluetooth 5 (Low Power Bluetooth LE) authentication software or protocol stack) production-level version, and the new version of Nordic Nrf5 software development kit (SDK), this is a complete peripheral driver support nRF52840 SoC production-level development tools. In addition, NRF52840 also has NRF5 SDK for MESH to provide development.
The NRF52840 module is based on Nordic's mature NRF52 architecture. Compared with previous low-power Bluetooth specifications, the main advantages of Bluetooth 5 include: 2 Mbps wireless raw data bandwidth (2Mbps), 4 times long-distance communication range, 8 times broadcast scalability (increasing the broadcast packet payload size to 251 bytes), and improved channel coexistence algorithm.
1, NRF52840Module (RF-BM-ND05) parameters:
| Chip model | NRF52840-QIAA-R |
| kernel | With 64 Mhz, 32-bit ARM Cortex M4F processor, it has sufficient general processing capacity, floating-point operation and DSP performance. |
| working voltage | 1.7V to 5.5V, recommended for 3. 3V |
| working frequency | 2402Mhz ~ 2480Mhz |
| Frequency error | ±20KHz |
| Emissive power | -20 ~ +8 dBm |
| Receiving sensitivity | -96dBm |
| Number of GPIO | The 29 |
| Module size | 15.00mm * 24.80mm |
| Flash | 1MB |
| Ram | 256KB |
| working temperature | -20 C ~ +70 C The chip supports -40 C ~+85 centigrade, and can adjust the working temperature by changing the crystal. |
| Storage temperature | -40 C - +85 C The chip supports -40 C ~+125 C, and the storage temperature can be adjusted by changing the crystal. |
2, Xin Chi Da NRF52840 module supports multi protocol:
- Bluetooth 5/ Bluetooth BLE;
- ANT/ANT+;
- IEEE 802.15.4 Thread and ZigBee;
- 2.4Ghz;
- Bluetooth Mesh;
- HomeKit;

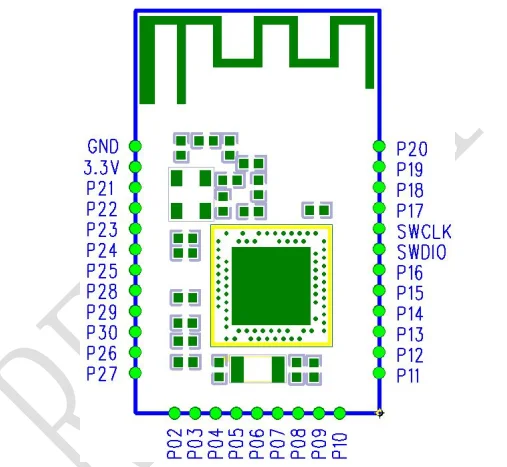

3, NRF52840Module pin:

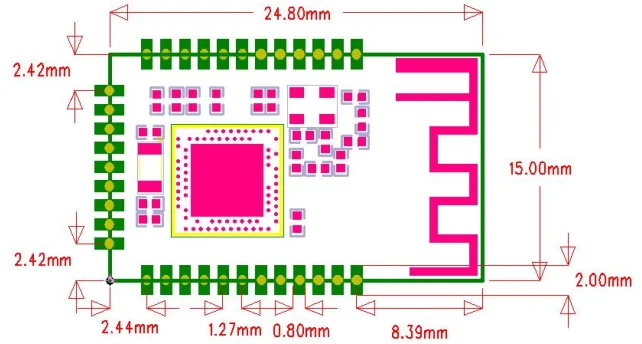

4, NRF52840Module package size
5, NRF52840 module related SDK
1, nRF5 SDK:
http://www.nordicsemi.com/chi/nordic/download_resource/59011/70/20936007/116085
2, nRF5 SDK for Thread and Zigbee:
http://www.nordicsemi.com/chi/node_176/nRF5-SDK-for-Thread
3, nRF5 SDK for Mesh:
http://www.nordicsemi.com/chi/node_176/Bluetooth-R/nRF5-SDK-for-Mesh
'
