RCmall Optical Fingerprint Reader Sensor Module for Arduino Mega2560 UNO R3 51 AVR STM32 Red Light O40 DC 3.8-7V FZ2904
Regular price
Rs.12,624.88
Shipping calculated at checkout.
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Share this Product
US $ 39.99
/piece
US $ 11.40
/piece
US $ 27.99
/set
US $ 21.74
/piece
US $ 1.59
/piece
US $ 38.88
/set
US $ 20.99
/piece
US $ 19.99
/piece
US $ 16.99
/set
US $ 10.99
/piece
US $ 6.66
/piece
US $ 1.29
/piece
US $ 7.99
/piece
US $ 1.22
/piece
US $ 8.99
/piece
US $ 2.39
/piece
RCmall Optical Fingerprint Reader Sensor Module for Arduino Mega2560 UNO R3 51 AVR STM32 Red Light DC 3.8-7V FZ2904
Specifications:
Supply voltage: DC 3.8 ~ 7.0V
Backlight color: red
Light way: long light / flashing
Supply current: Operating current: <60mA
Peak current: <85mA
Fingerprint image input time: <0.5 seconds
Window area: 15 × 17mm
Matching method: Comparison method (1: 1)
Search method (1: N)
Model type: O40
Characteristic file: 384 bytes
Template file: 786 bytes
Storage capacity: 240
Security Level: 3 (from low to high: 1,2,3,4,5)
False Acceptance Rate (FAR): <0.001% (Security Level 3)
Refusal rate (FRR): <1.0% (security level is 3)
Search time: <220 ms (1: 240 average)
Host interface: UART (TTL logic level)
Communication baud rate (UART): (9600 × N) bps Where N = 1 ~ 12 (default N = 6, ie 57600bps)
It can work with any microcontroller which with serial port:such as Arduino,51,avr,stm32,pic,arm,msp430
Many functions:fingerprint collection, fingerprint registration, fingerprint comparison and fingerprint search
Applications:
Fingerprint door locks, safes, guns, financial and other security areas;
Access control systems, industrial computers, POS machines, driving training, attendance and other areas of identity;
Private clubs, management software, licensing and other management areas;
Medicare recipients, pensioners receive, fingerprint payment and other financial areas.

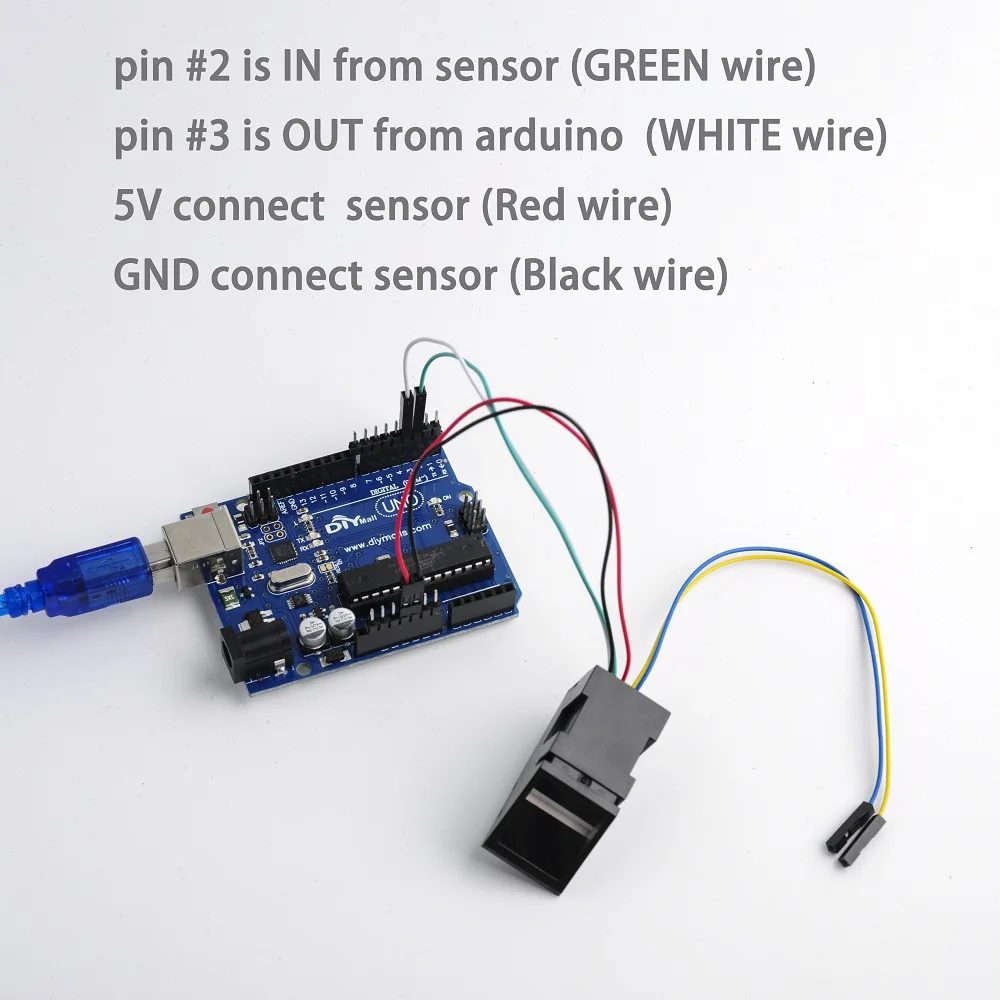

Fingerprint Module works with UNO R3 Connection:
pin #2 is IN from sensor (GREEN wire)
pin #3 is OUT from arduino (WHITE wire)
5V connect sensor (Red wire)
GND connect sensor (Black wire)

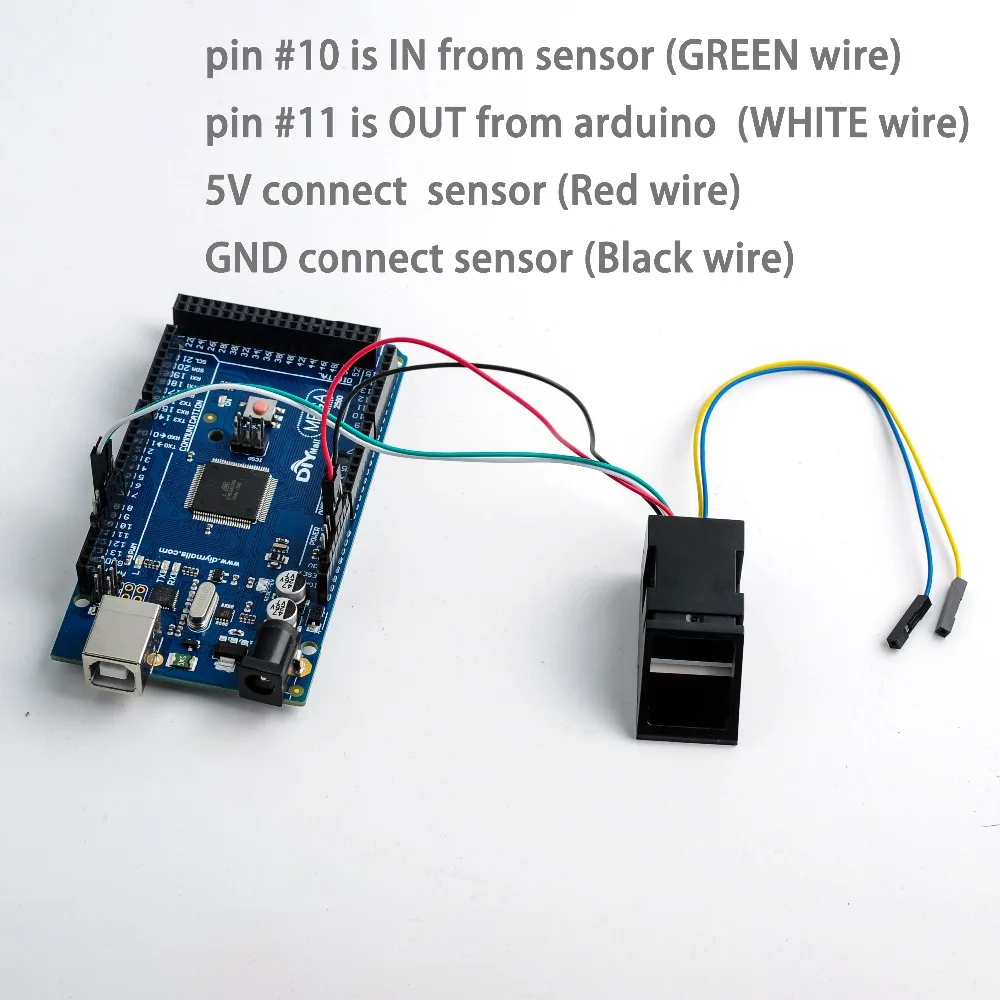

Fingerprint Module works with 2560 R3 Connection:
pin #10 is IN from sensor (GREEN wire)
pin #11 is OUT from arduino (WHITE wire)
5V connect sensor (Red wire)
GND connect sensor (Black wire)
Package Includes:

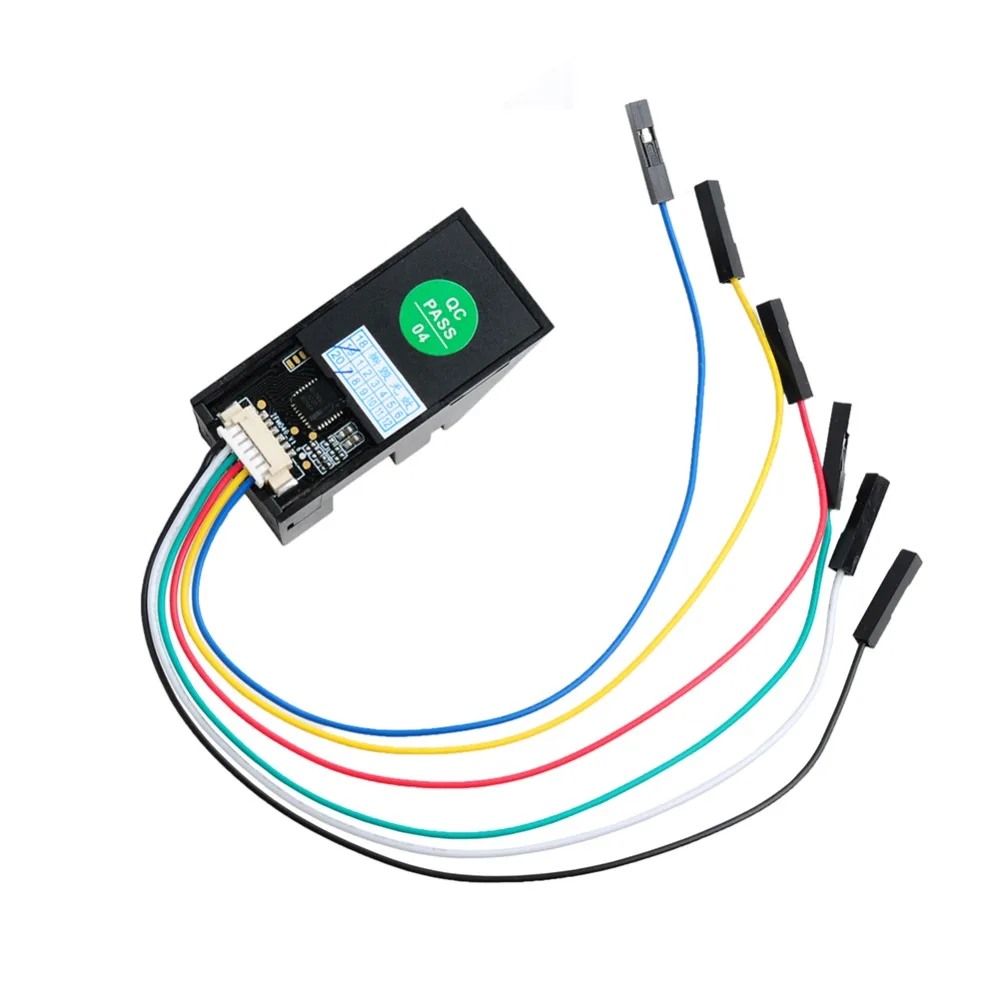

1 X Optical Fingerprint Reader Sensor
1 X Cable
FAQ
Q: Can the wires be replaced if I want to move it to a new project? What are the wire connections called?
A: The white connector space is 1.27mm, if you want to use it for other projects, there is no need to change whole cable, you just need to solder female dupont cable or male dupont cable, then add heat shrink on the solder position, please check this picture http://s5.ecpperp.com/flyfun/data/upload/product_img/190411/FZ2904A.png
