144MHz 2 M band bandpass filter, ultra small volume, SMA interface
Regular price
Rs.32,380.78
Shipping calculated at checkout.
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Share this Product
Characteristic：
Super small volume, excellent selectivity and high out of band inhibition.
Application:
144MHz communications receiver, HAM 2 M band, laboratory and other highly selective applications.
Model: FBP-144
Impedance: 50 Ohms
Center frequency: 144 MHz
Center frequency insertion loss: 2.5 ~ 3 dB 144 MHz
3 dB bandwidth: 127~157 MHz
30 dB bandwidth: 105~200 MHz
Greater than 50 dB stopband: DC to 85 MHz & 300~1400 MHz
Maximum load power: 3 W (35 dBm)
Interface: SMA-M, SMA-F

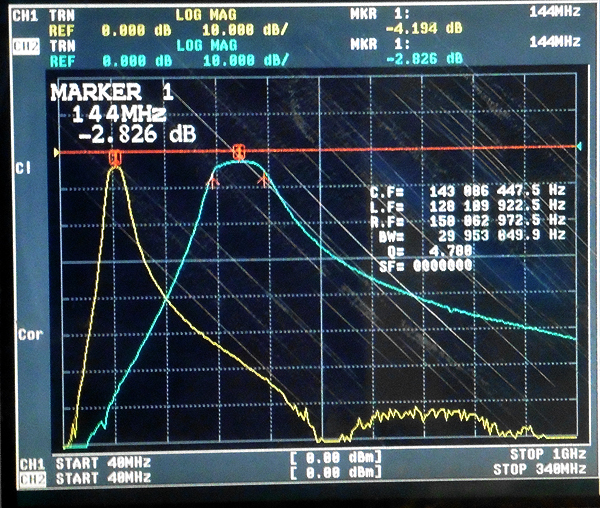

Insert loss chart:

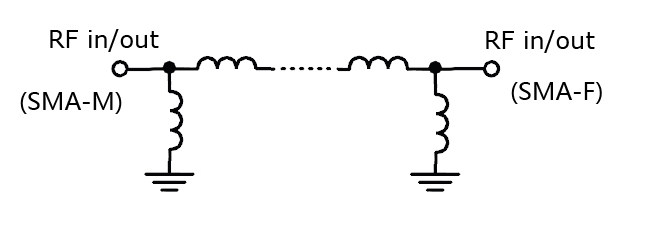

Circuit diagram (Note: both ends of the ground DC short circuit, the application should pay attention to):

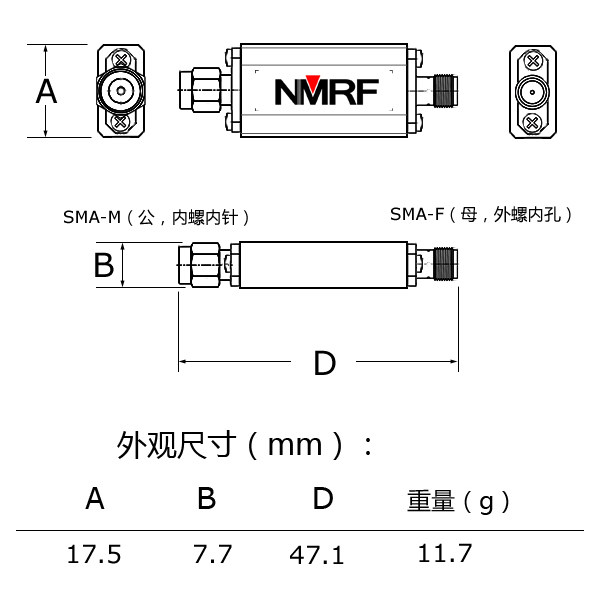

Outer size:
