F450 450 Quadcopter MultiCopter Frame kit APM 2.8 w/ Shock Absorber 7M GPS Power Module 2212 Motor 30A Simonk ESC
Regular price
Rs.85,336.18
Shipping calculated at checkout.
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Share this Product
F450 frame description
Features:
Built from quality glass fiber and polyamide nylon.
Integrated PCB connections for direct soldering of your ESCs
Pre-threaded brass sleeves for all of the frame bolts.
Colored arms for orientation to keep you flying in the right direction.
Large mounting tabs on main frame bottom plate for easy camera mounting.
Easy assembly.
Specs:
Width: 450mm
Height: 55mm
Weight: 280g (w/out electronics)
Motor Mount Bolt Holes: 16/19mm
G.Weight: 395g
Wheelbase: 17.7in/450mm
Net weight: 272g
APM V2.8.0 description:
- This version eliminates the 1.0mm 6P SM06B GPS interface of V2.52 old version, and change it into DF13-4P I2C external compass interface.
- Put DF13-5P GPS interface with external compass interface, convenient for the connection of GPS and externalcompass.
- V2.52 I2C interface changes to multifunctional MUX interface
- Modified version added isolation resistor, when the OSD interface used with telemetry, the interfaces is effectively avoided
- V2.52 version 3.5V power supply adopts IPS79133, 6V withstand voltage, output current 100mA, need to supply power for six IC, slightly inadequate power supply ability, easy to be burnt dwon. The new version adopts US LP2985-3.3, 16V withstand voltage, more reliable, redcucing the possibility of Bad Gyro health

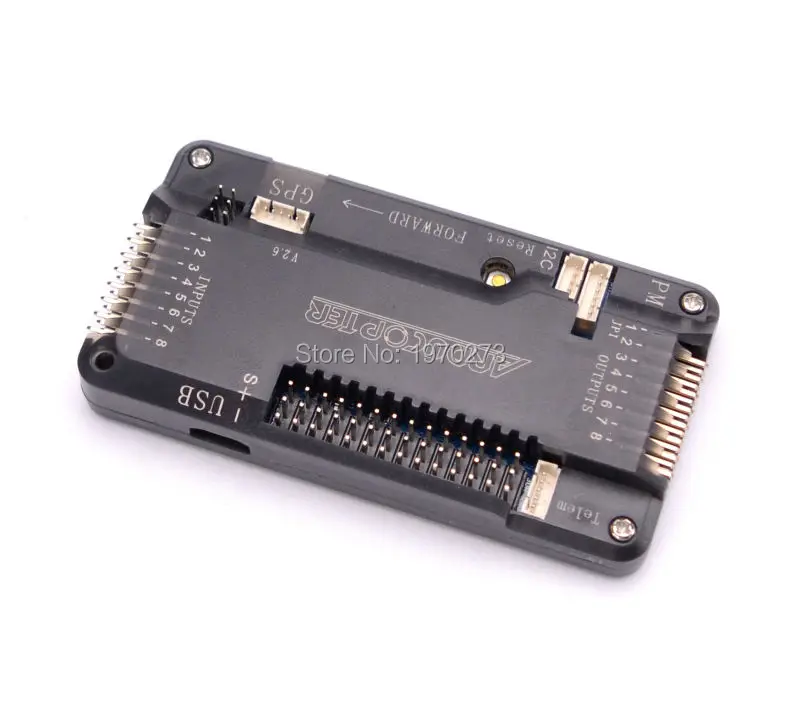

APM V2.8.0 Flight Controller
- Needle: staight
- Power supply: LP2985-3.3
- Max voltage: 16V
- Add a 47uF tantalum capacitor
- Port: MUX (UART0, UART2, mnnI2 and OSD are optional, OSD is the defaulted output)
Jumper cap choose:
- Built-in compass: plug the jumper cap in the MAG pin header.
- External compass: pull up the jumper cap from the MAG pin header.
Package Included:
1pcs F450 Quadcopter Frame w/ landing gear
4pcs 2212 920kv / 1000kv Motor

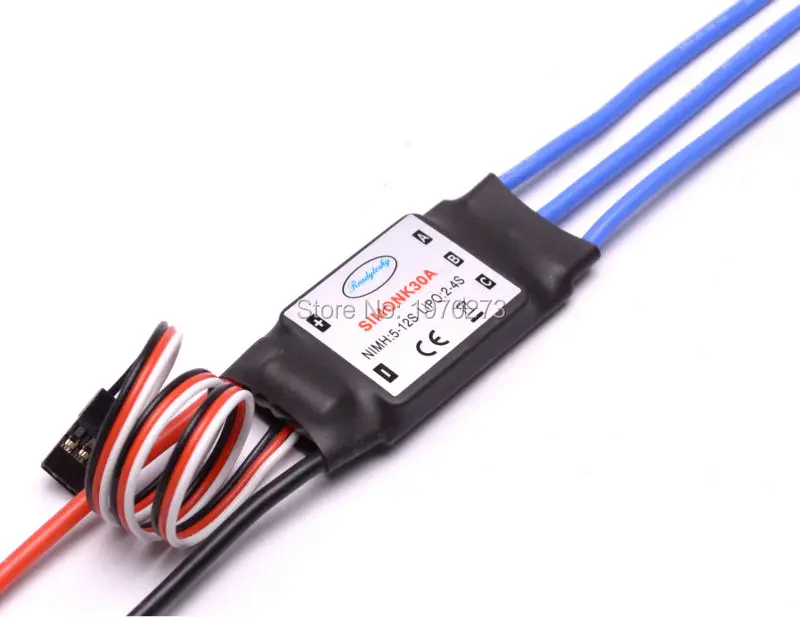

4pcs 30A Simonk esc
1pcs APM2.8 Board with Case ( For the apm board , we have both straight pin and side pin ones , if you have a request about it , please leave us a message , or we will send the straight pin one as default )
1pcs shock absorber

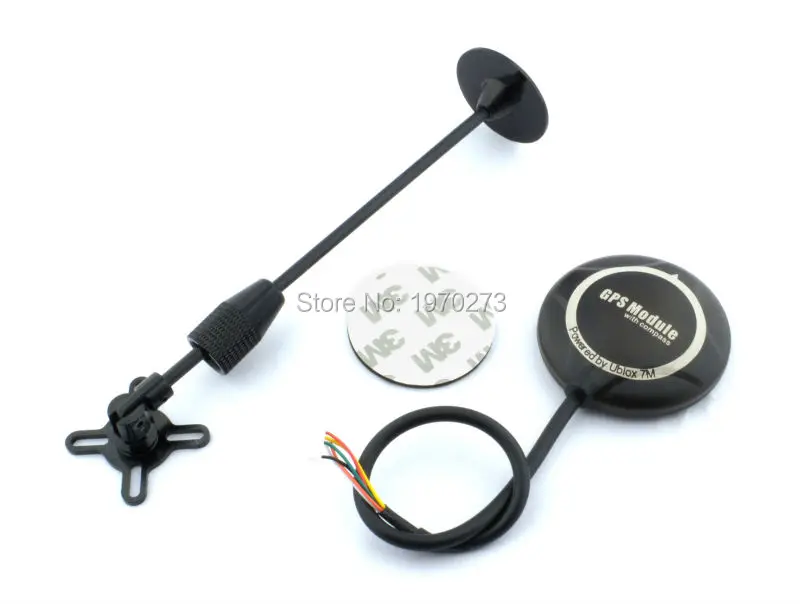

1pcs 7M gps with gps stand holder
1pcs Power Module
5pcs 10cm servo cables
8pcs 1045 Propeller ( Send the color at random )
12 Pairs 3.5mm Banana Connector
Note:
1.About the APM 2.8 FC Board, because of the different production batchs, the board color or shell has a little difference, send it at random.
2. About the 7M GPS, Because of different production batch, there are two kinds of shell, send the shell at random.
